Custom Industrial Paint Systems Manufacturer
We design and manufacture custom paint booths, industrial ovens, and parts washers for high-performance industrial finishing operations. Our systems are engineered to meet OSHA, NFPA, and EPA requirements and are used by manufacturers nationwide.
Engineered for performance, compliance, and seamless integration into your production process.
RayPaul Manufacturing is a U.S.-based manufacturer specializing in custom industrial paint systems for demanding production environments. Our equipment is engineered around throughput, part geometry, coating requirements, and regulatory compliance. From standalone systems to fully integrated finishing lines, we deliver reliable, long-term solutions nationwide.
Custom Industrial Paint Systems
Complete turnkey industrial paint systems built to your specifications to meet your needs.
Systems

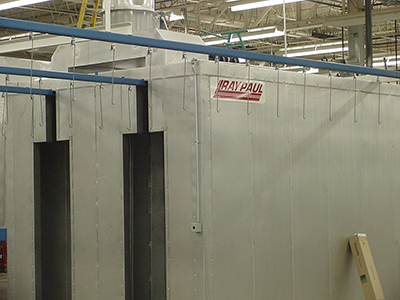

Industrial Ovens
Industrial curing, drying, and baking ovens designed for precise temperature control and efficient operation. Built to integrate seamlessly with your paint system or production line.
Ovens

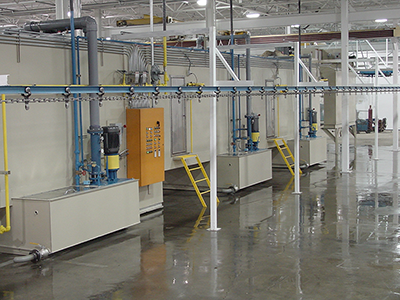

Industrial Washers
Custom parts washers designed to prepare components for painting and coating. Engineered for effective cleaning, throughput efficiency, and system compatibility.
Washers
Paint Booths
Custom-designed industrial paint booths engineered for consistent finishes, safe airflow, and regulatory compliance. Available in multiple configurations to match your process requirements.
BoothsEngineered-to-Order Industrial Equipment
Every paint system we manufacture is custom-designed. We do not sell off-the-shelf equipment. Each system is engineered based on:
- Part geometry and size
- Production volume and cycle time
- Coating and curing requirements
- Facility layout and workflow
- Applicable safety and environmental regulations
Built to Meet Industry Standards
Our industrial paint systems are designed with compliance and safety in mind, including:
- OSHA requirements
- NFPA standards (including NFPA 33 where applicable)
- EPA considerations for emissions and airflow
- Industry best practices for finishing operations
Serving Manufacturers Nationwide
Our custom industrial paint systems are used across a wide range of industries, including:
- Automotive and transportation
- Agricultural equipment
- General manufacturing
- Heavy equipment and fabricated metal
Why Manufacturers Choose RayPaul
Manufacturers choose RayPaul for our engineering-driven approach and long-term system reliability.
- Custom-engineered paint systems (no off-the-shelf equipment)
- National manufacturing and support capabilities
- Proven experience with complex finishing systems
- Focus on long-term performance and reliability
- Systems designed for integration and scalability
Request a Custom Paint System Quote
Whether you need a custom paint booth, industrial oven, or a complete paint line system, our team can help design a solution tailored to your operation.
Oven

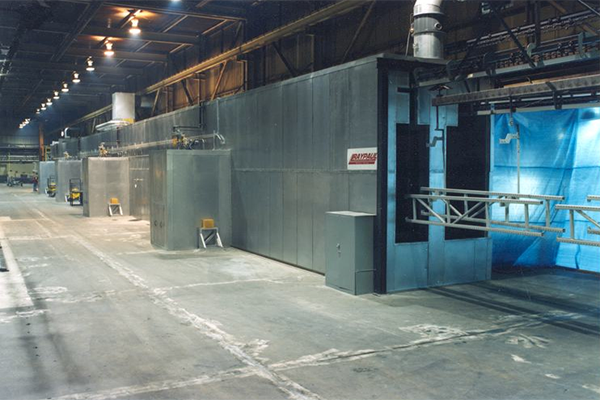

200ft Long 4 - Zone Cure Oven
Washer
200’ 2-Lane Washer
Booth

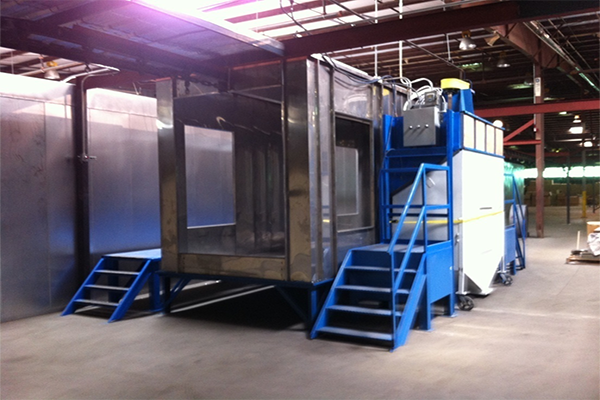

Custom Industrial Powder Booth
Booth

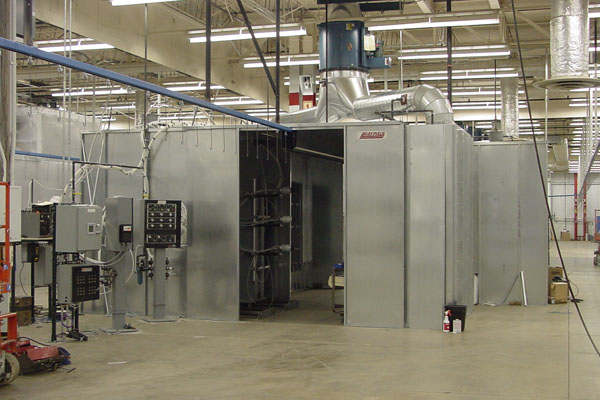

6 Station Opposing In-Line Spray Booth
System

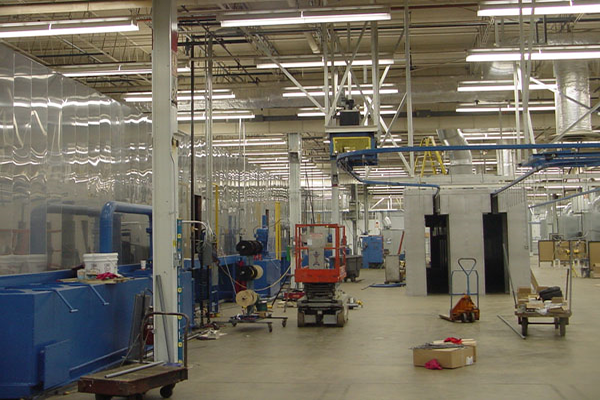

Extrude Aluminum Paint Line - 40’ Length Capacity
Washer

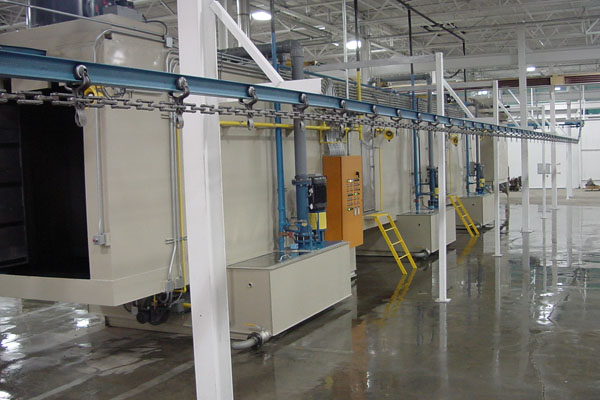

3 Stage Washer
Washer

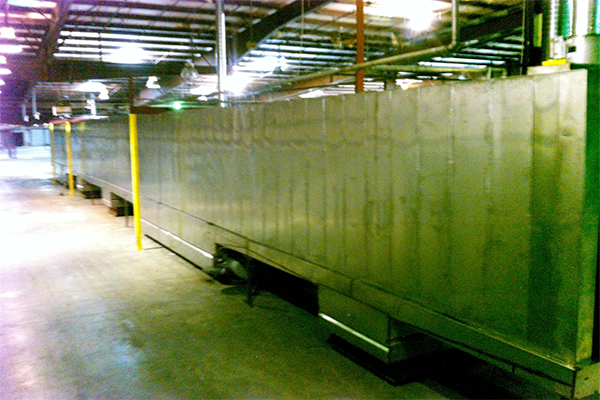

5 Stage Stainless Steel - Modular Washer
Booth

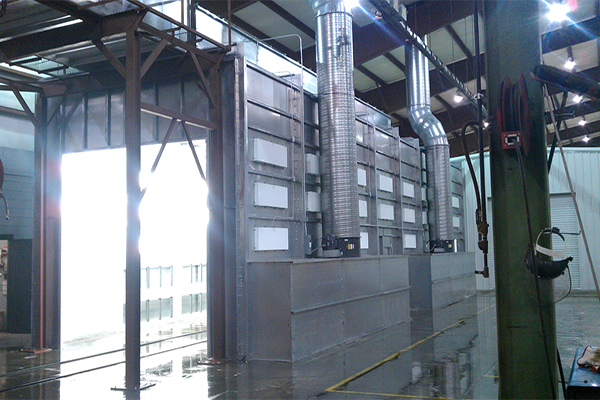

70’ Truck Booth
Booth

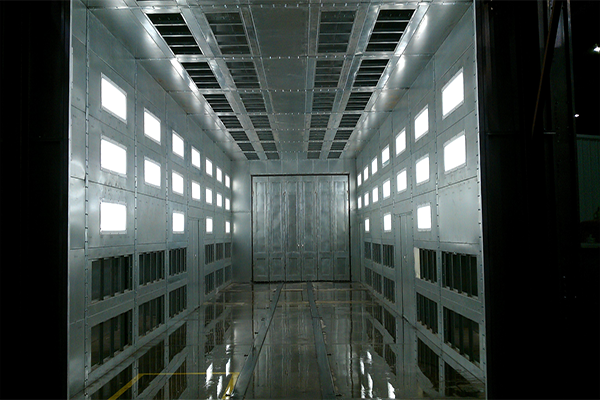

Truck Booth Interior
System
Pallet Racking Paint Sysem - 2-Lanes /400’ Long /22’ Tall
System

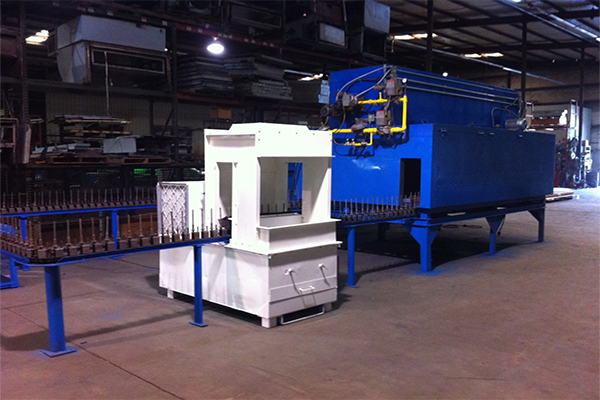

Chain-On-Edge Powder System
Washer

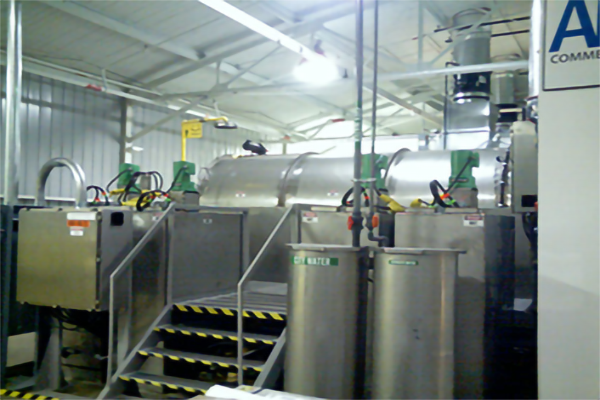

250 Recipe Programmable Process Washer
Washer

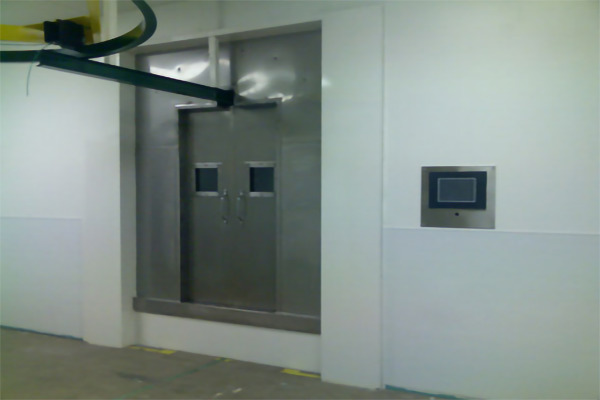

250 Recipe Programmable Process Washer
System
Carc Paint Line /6 Booths / Dual Dry /Dual Cure - 7 Stage Stainless Steel Zinc Washer With Waste Heat Evaporation System
Washer

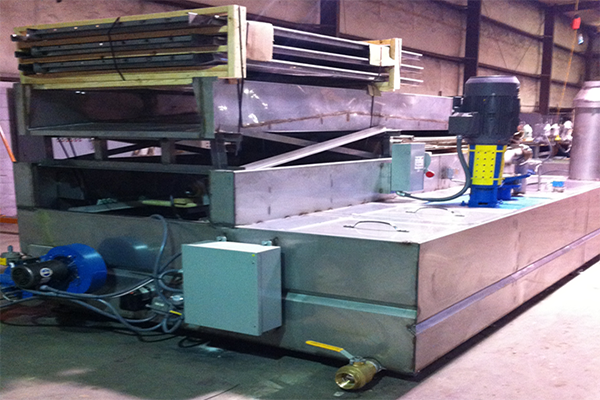

5 Stage Washer Packaged for Shipment
Oven

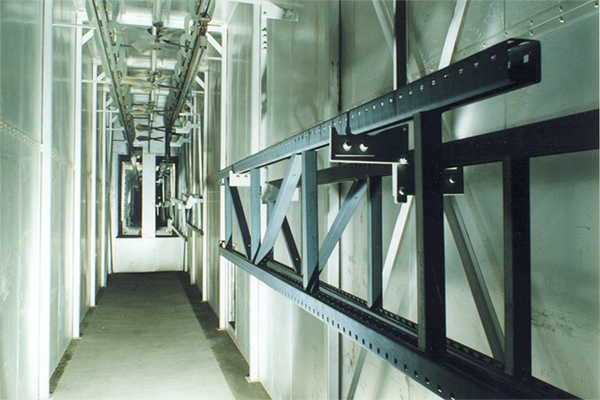

Dry Off Oven With Turbulator Fans
Oven
Interior of Cure Oven
Washer

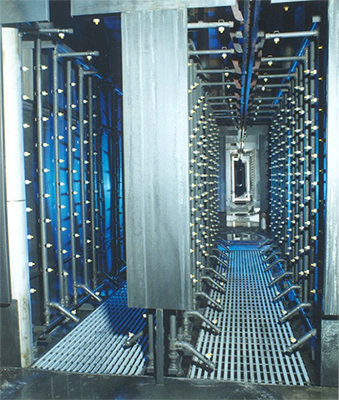

Dual Lane Washer Interior
Washer

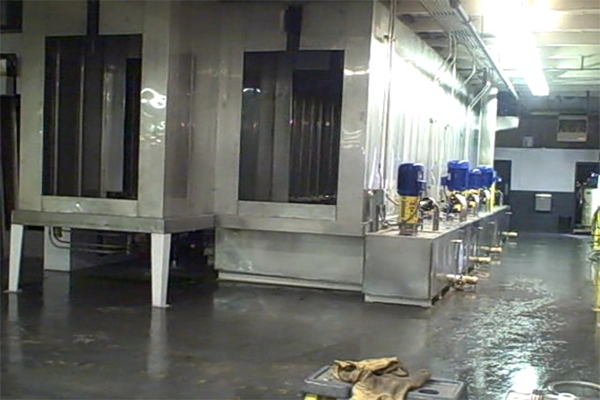

Stainless Steel U-Turn Washer
System

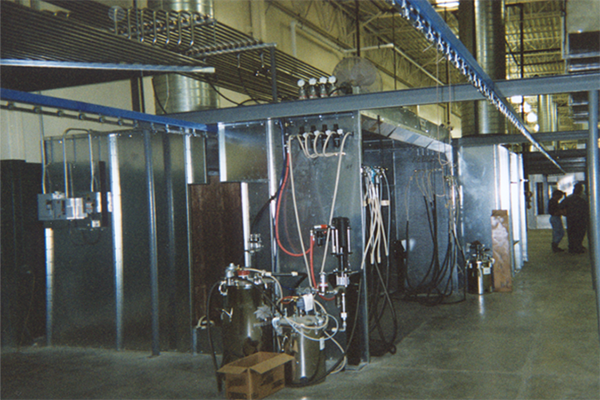

Wood Cabinet Painting Line - 18 Booths /8 Dry Ovens / 4 Air Makeup Units
System

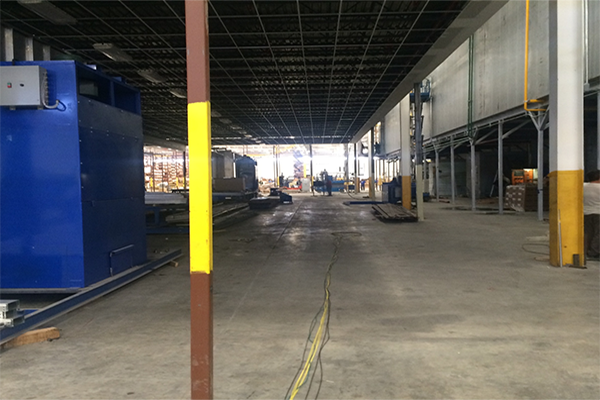

80’W x 150’L x 22’H EV Room / 168’ Elevated Cure Oven
Washer
Stainless Steel Washer -7 Stages, 200+ Feet, Dual Lane
Booth

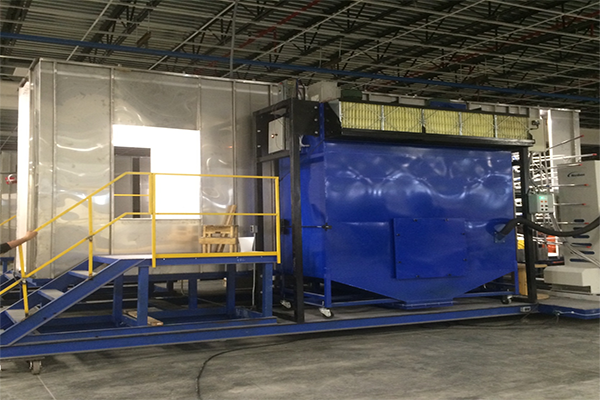

Powder Booth –Roll On, Roll Off
System

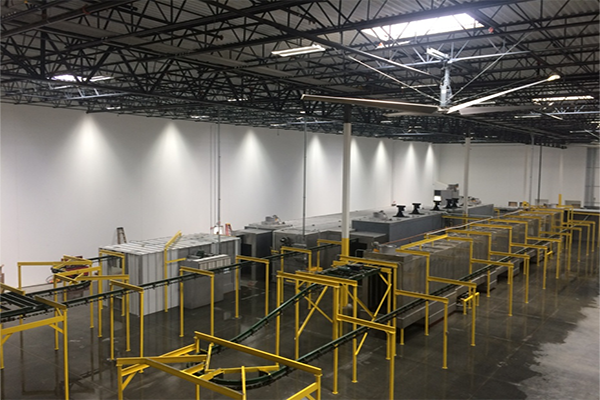

Powder Line
System
Powder Line
System
Powder Line
System
Interior Of 10K Clean Room With Interlocking Doors and Rotating Conveyor Intersections / With 2 Programmable Process Ovens
