Economical Industrial Washers

Modular Multi-Stage Flow-Through Wash Tunnel

RayPaul Manufacturing’s Economical Parts Washer is a modular, multi-stage flow-through system designed for manufacturers seeking reliable cleaning performance with flexible configuration and cost-efficient installation. This washer is ideal for pretreatment, cleaning, and rinsing operations prior to finishing or assembly.

System Configuration & Construction

Multi-Stage Design:

Available in 2 to 5 wash and rinse stages to match process requirements

Flow-Through Tunnel Configuration:

Parts move continuously through multiple wash tanks for consistent, repeatable cleaning

Standard Profile:

3’ x 5’ opening (custom sizes available)

Upper Panels:

• 20-gauge aluminized steel
• Powder-coated, interlocking panel design
• Stainless steel construction available

Wash Tanks:

• 14-gauge formed and welded tanks
• Powder-coated for corrosion resistance
• Stainless steel tanks available

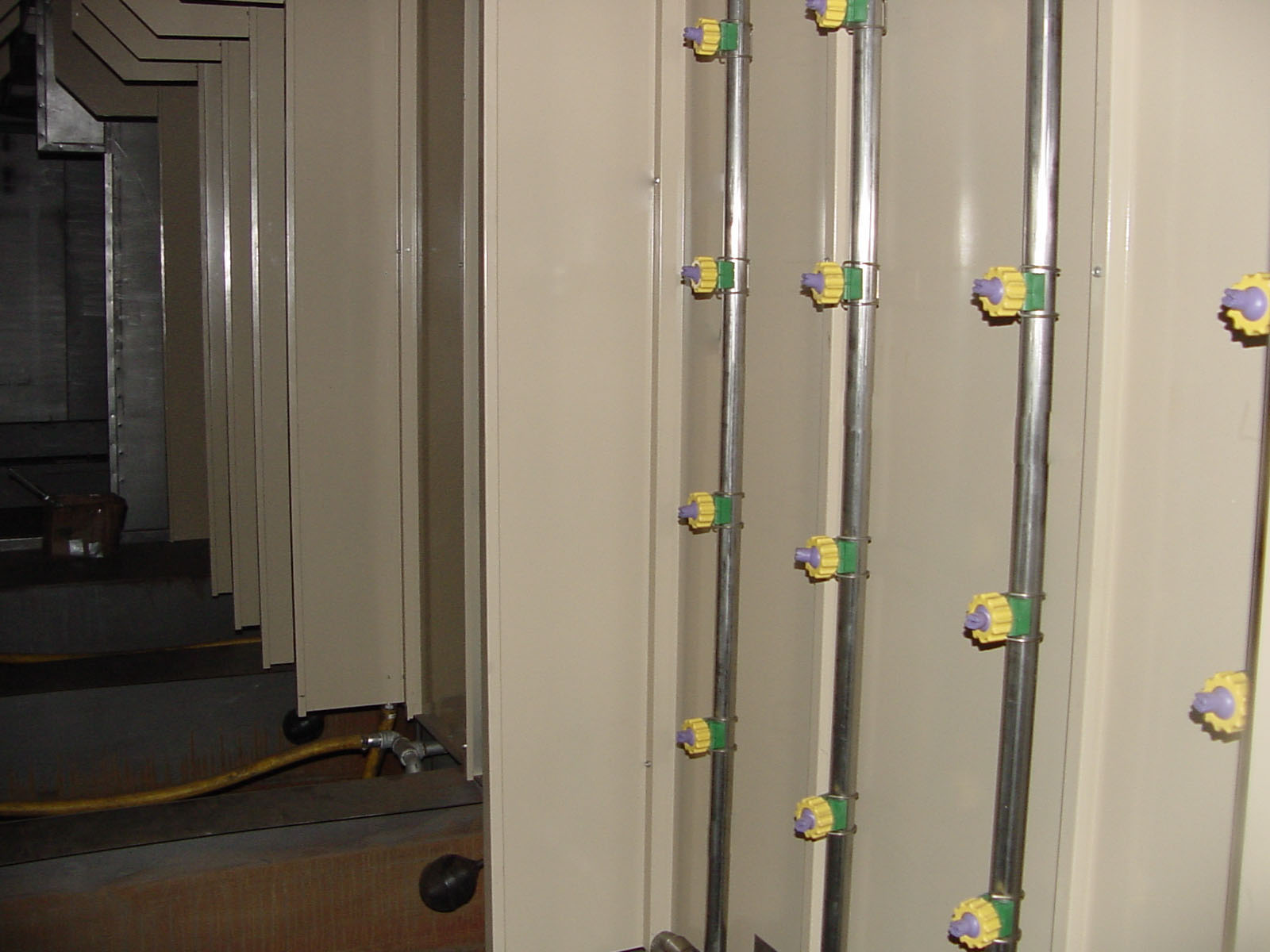

Stainless Steel Risers

Designed for durability and long service life in wet environments.

Heated Stages with Integrated Heat Exchange

• Heated wash stages utilize a unique heat exchanger design integrated from the oven system
• Efficient thermal transfer helps reduce energy consumption
• Supports consistent wash temperatures across all stages

Spray & Pump System

Powered Spray Nozzles:

High-pressure spray nozzles wash and rinse parts as they travel through the tunnel.

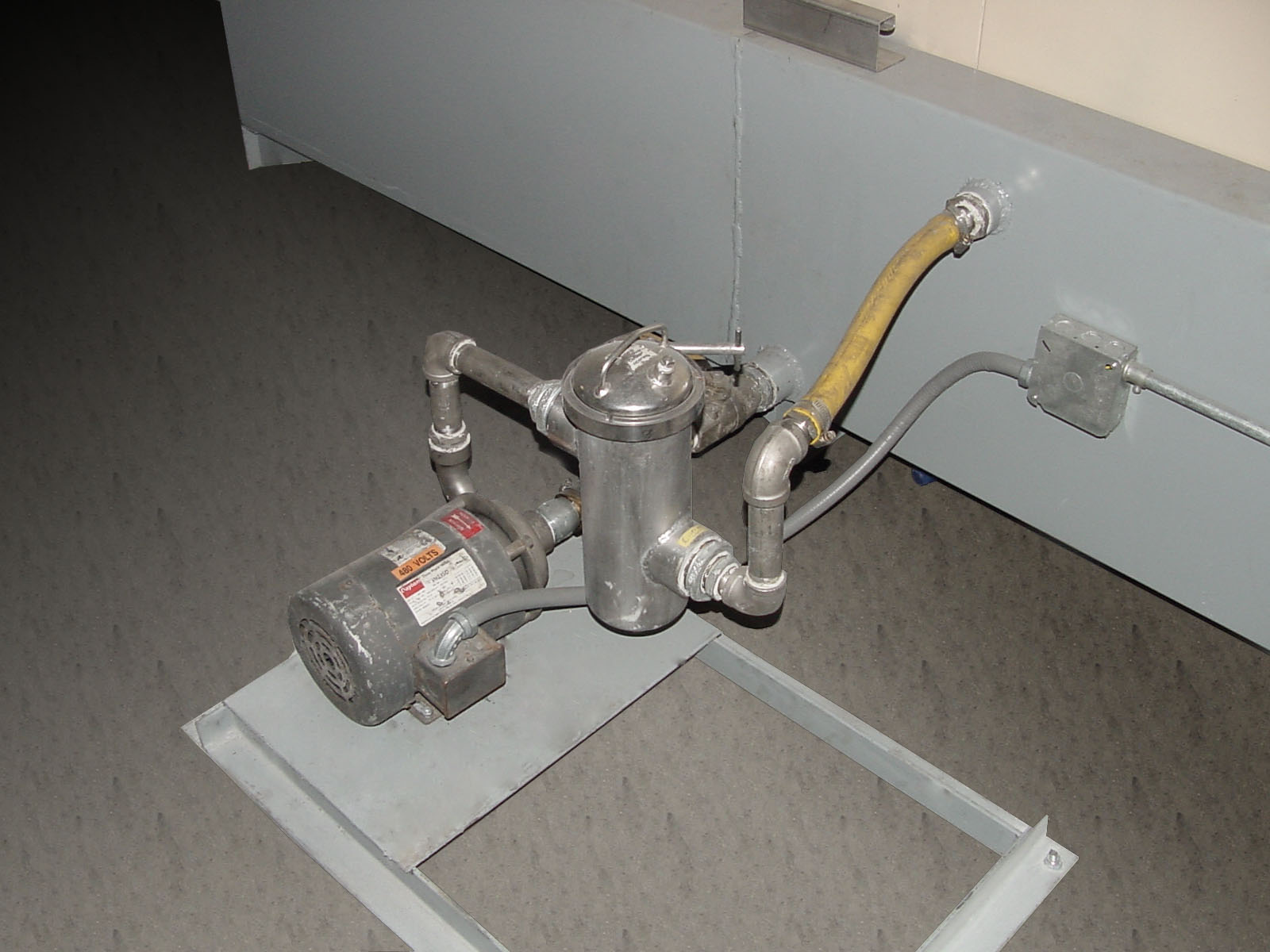

Horizontal Pump Design:

• Recirculates wash solution from tanks to spray manifolds
• Designed for easy maintenance and service access
• Allows for future capacity upgrades

Adjustable Spray & Flow Paths:

The system’s modular design allows for easy adjustment of spray patterns and process flow changes as production needs evolve.

Designed for Efficient Installation & Expansion

Knockdown Shipping Design:

Allows for reduced freight costs and easier delivery

Easy Assembly:

Designed for straightforward installation in new or existing facilities

Easy to Modify or Expand:

Modular construction supports future process changes, additional stages, or system upgrades

Typical Applications

• Pretreatment prior to painting or powder coating
• Industrial parts cleaning and rinsing
• High-throughput manufacturing environment
• Integration into complete turnkey industrial finishing systems
• Pretreatment prior to industrial paint booths or powder coating systems

Industrial Washer FAQs

What is an economical industrial washer?

An economical industrial washer is a cost-effective cleaning and pretreatment system designed for reliable, repeatable part washing without unnecessary complexity. These systems are ideal for manufacturers that require consistent cleaning performance while maintaining controlled capital and operating costs.

How many stages does an industrial washer need?

The required number of stages depends on part cleanliness requirements, coating specifications, and downstream processes. Most economical industrial washers are configured with 2 to 5 stages, typically including wash, rinse, and optional heated stages for pretreatment prior to painting or powder coating.

What is the difference between a spray washer and an immersion washer?

Spray washers use high-pressure nozzles to clean parts as they move through a tunnel, making them ideal for continuous production lines and complex geometries. Immersion washers submerge parts in cleaning solutions and are typically used for batch processing or heavy contamination. RayPaul Manufacturing engineers both types depending on application requirements.

Can an economical washer be used for pretreatment before painting or powder coating?

Yes. Economical industrial washers are commonly used for pretreatment prior to painting or powder coating. Proper washer design ensures surface cleanliness, chemical compatibility, and rinse quality to support consistent coating adhesion and finish quality.

Are stainless steel washers available?

Yes. While economical washers are commonly constructed with powder-coated aluminized steel, stainless steel panels, tanks, and risers are available for applications requiring enhanced corrosion resistance or chemical compatibility.

Can the washer be expanded or modified in the future?

RayPaul Manufacturing’s economical washer systems are designed with modular construction, allowing additional stages, upgraded pumps, or process changes to be incorporated as production requirements evolve.

What industries commonly use industrial spray washers?

Industrial spray washers are widely used in automotive manufacturing, fabricated metal production, agricultural and construction equipment, OEM manufacturing, and contract finishing operations.

Can an industrial washer be integrated into a turnkey finishing system?

Yes. Economical washers can be supplied as standalone units or fully integrated into a turnkey industrial finishing system including paint booths, curing ovens, conveyors, and controls.

How is the washer sized for my production?

Washer sizing is based on part dimensions, production rate, required dwell time, and facility layout. RayPaul Manufacturing engineers each washer system to meet throughput goals while maintaining consistent cleaning performance.

Do you offer custom industrial washer systems?

Yes. In addition to economical models, RayPaul Manufacturing designs custom industrial washer systems for demanding applications requiring specialized materials, advanced automation, or unique process requirements.

Integrated With Complete Paint Systems

This economical parts washer can be supplied as a standalone unit or fully integrated into a complete finishing line including:

• Industrial paint booths
• Curing and drying ovens
• Turnkey industrial paint systems

RayPaul Manufacturing also designs custom industrial washers and fully integrated turnkey finishing systems for complex production environments.

Request an Economical Washer Quote

If you need an economical industrial washer for your specific cleaning and surface preparation requirements, our engineering team can develop a solution tailored to your operation.
